超音波自動抓頻加工機
Self-Tuning Ultrasonic Drilling Machine
寶石、半寶石、鐵氧體、矽、玻璃和陶瓷均可用該設備加工。
有別於傳統超音波加工機，更換不同的加工工具時，用戶需要重新進行頻率調整。這種全新的模型是完全自我調整的。
面對種類繁多的加工刀具，您可以輕鬆捕獲正確的頻率。適合初次使用超音波加工設備的您。
選配方案:
1.
升降桿鑽床結構，使加工操作更便利。
2.
針對半寶石圓珠打孔， 夾珠璣的夾具可180度翻轉，當需要從兩側鑽孔時，更有效且精準。
Precious stones, semi-precious
stones, ferrite, silicon, glass, and ceramics
can bemachined with this equipment.
Traditional ultrasonic machine,
when changing a different processing tools,
usersneed to re-do every step of frequency
adjusting in accordance with the processingtools.
This all-new model is fully self-tuning. In the
face of a wide range of machining tool,you can
easily capture the right frequency.
The drill press option allows a
vertical movement for controlled drilling into
the workpiece. This tight sliding vertical
movement allows you to mount your material in
afixture to get controlled drilling for beads
and other products. It is especially usefulwhen
there is a need to drill from both sides.
Specification:

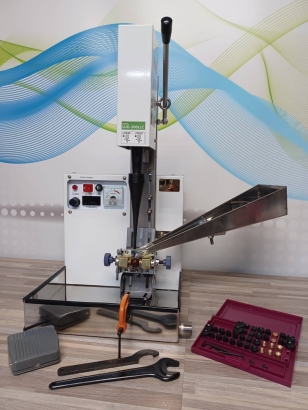

1. Ultrasonic drill machine
(auto-tuning frequency tracing) and comes with 5
horns
2. Accessory box: a wrench tool,
a propane torch, flux, silver solder.
3. The drilling bead device is
optional
4. The drill press mast is
optional |
