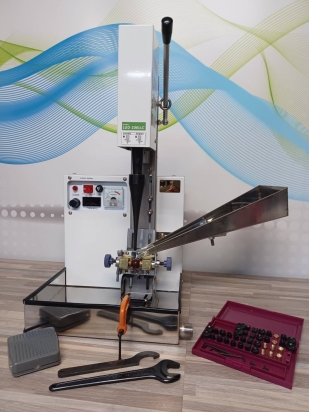

Manual Tuning Ultrasonic Drilling Machine
LUD-200B_超音波手調頻率加工機
該設備設計用於對硬質材料進行鑽孔、雕刻和切割利用超音波能量脆性材料。寶石、半寶石、碳化鎢、鐵氧體、矽、玻璃、陶瓷可以用該設備進行加工。
對於擅長使用超音波加工機進行各項加工的您,更換不同的加工工具時,依據加工需求,調整出最佳加工頻率,讓您加工事半功倍。
選配方案:
1.
升降桿鑽床結構,使加工操作更便利。
2.
針對半寶石圓珠打孔, 夾珠璣的夾具可180度翻轉,當需要
從兩側鑽孔時,更有效且精準。
This equipment is designed to perform drilling,
engraving and cutting of hard and brittle
materials by use of ultrasonic energy.
Precious stone, semi-precious stone, tungsten
carbide, ferrite, silicon, glass, ceramics can
be machined with this equipment.
The ultrasonic generator is of transistor type
and generates alternating-current of ultrasonic
frequency as the source of vibration energy.
Adjusting the right frequency to have the
resonance
vibrating manually based on various tools.
Specification:
1. Ultrasonic drill machine comes with 5 horns
2. Accessory box: a wrench tool, a propane
torch, flux, silver solder.
3. The drilling bead device is optional
4. The drill press mast is optional |
