●Autotracking
ultrasonic system
●Panasonic
7” Human Machine Interface (HMI)
●Customized
PLC design and programming
|
|
 |
|
|

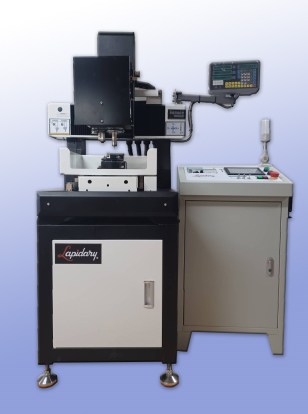

超音波四軸加工機4-axis
Ultrasonic PLC mach
n
Introduction:
4-axis Ultrasonic PLC machine is a custom
precision finishing ultrasonic machine, is the
best way to drill, engrave and cut hard, brittle
material, like lapidary material, ceramic and
glass etc. it can be used widely 3C industry,
Semiconductor, Green industry, Medical industry
ect
.Specifications:
|
Working Voltage: |
AC 110V |
|
Max. Working Space: |
300mmx300mmx150mm |
|
Feed height: |
300mmx300mmx150mm |
|
Repeatability
(positioning precision) |
≤±0.01mm |
|
Architecture: |
cast frame |
|
Motor drive |
stepping motor |
|
Ball Screw: |
TBI |
|
Linear slide: |
HIWIN |
|
Accessory-1: |
optical scale |
|
Accessory-2: |
Manual Pulse
Generator |
|
Multiaxis: |
X, Y, Z and rotating
platform |
|
Ultrasonic tool
holder: |
ER16 |
|
Outer Dimension: |
Main machine: 738 x
706 xH:1500mm
Controller: 520 x 300
x H: 930mm |
|
Net.Weight: |
Main machine:
approx.160kg
Controller: approx.
20kg |
|
|
